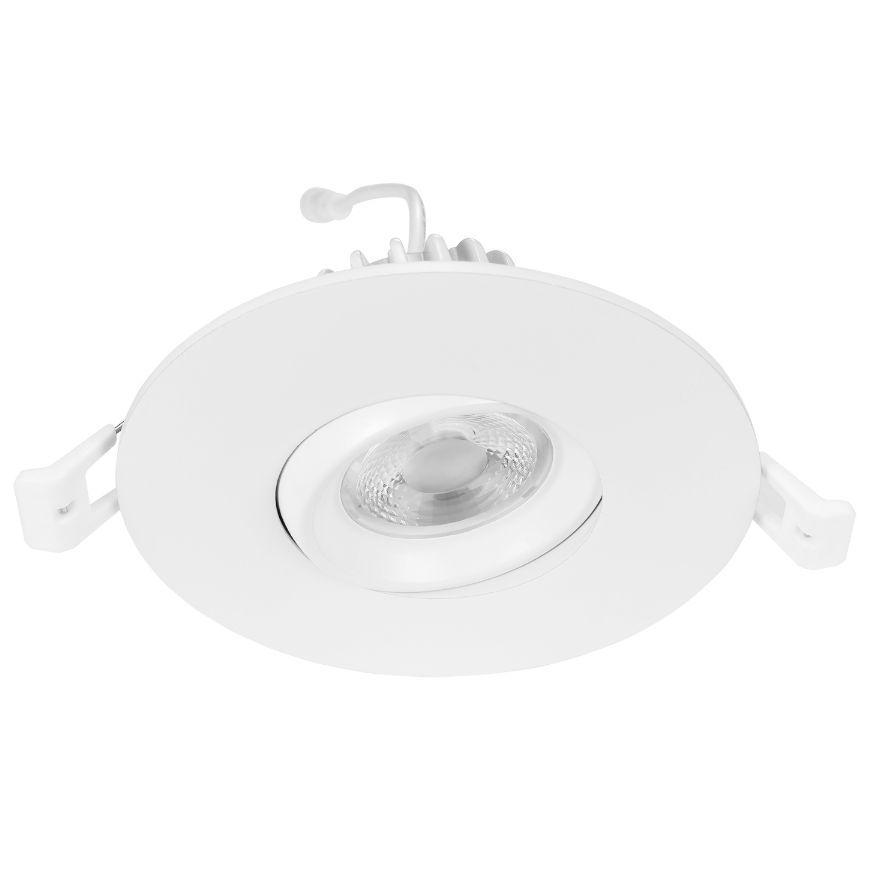

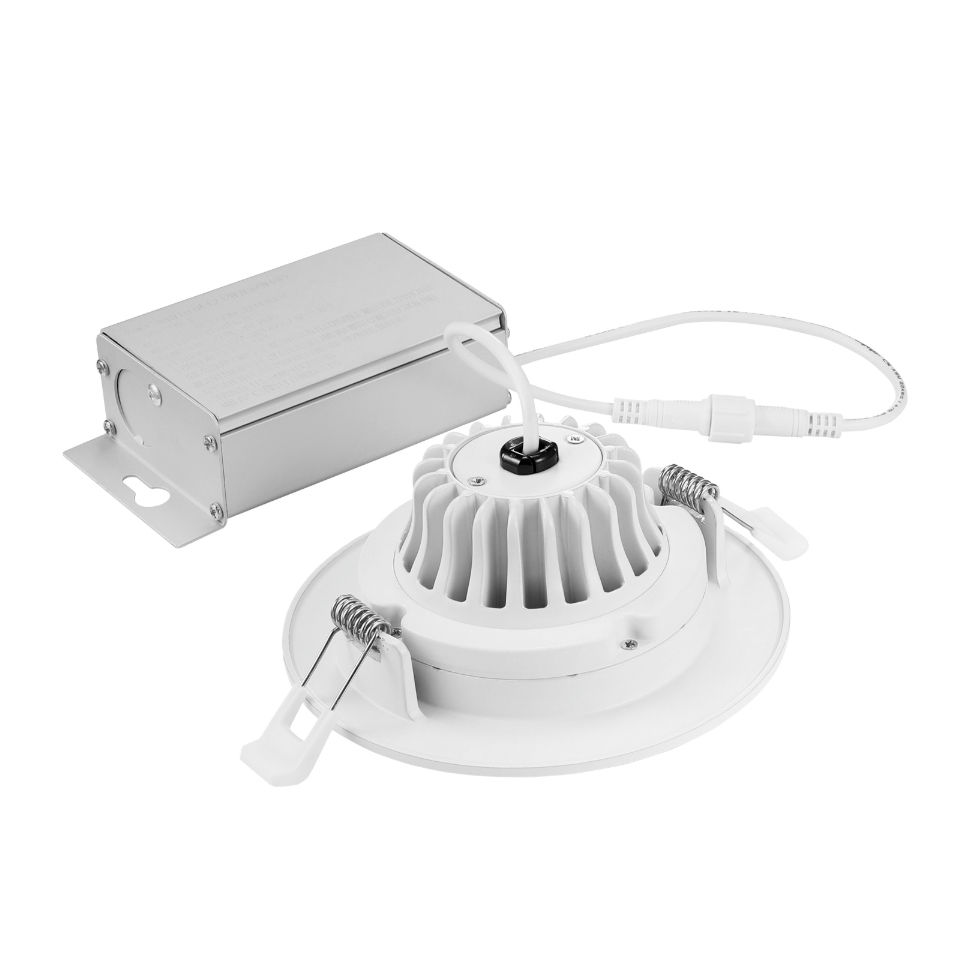

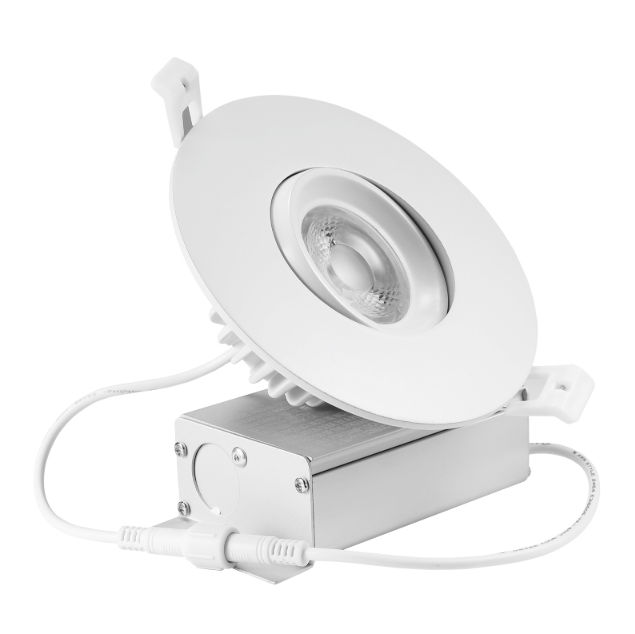

B2 White Tunable Recessed Eyeball Downlight
B Series Eyeball Recessed Lights
on off cct.jpg
White Tuning with Conventional ON/OFF Switch

Colour temperature of B4 Eyeball Recessed Light rotates from 3000K to 4000K to 5000K each time you flick the conventional wall mount switch off then on.



Both B2 and B4 is made for the retrofit application. It is easy to install, no rewiring is required, and particularly easy to aim because the eyeball rotates 360° and tilts 30°.



B Series is suitable for wet locations. It is an economical, high-performance, and energy-efficient solution.



  • Power: 12W

  • Input Voltage: AC110-120V

  • Cut-out Size: 4"inch

  • Lumens output: 1,060

  • Beam Angl: 38°

  • CRI: > 80

  • 360° rotation and 30° tilt

  • Rated Life: 35,000 hours

  • IC and Air Tight Rated

  • ETL & cETL listed

Ordering Guide

Model

​

B2

B4

Optics

​

38° Flood

Color Temperature

​

30 - 3000K

​

WT - White Tuning (B4 only)

(Tunable 3000K/4000K/5000K)

​

Finish

​

BK   - Black

WH  - White

Wattage

​

12W

​

12W

example:B4-BK

Download
pdf
B4 Specification
pdf
B3 Specification
zip
IES FIles
pdf
Instruction Sheet
